CL Type Feeders
Not every product can be put on these pages, so please enquire about any items for a customized quote. >> contact us |
|
|
 PHILIPS FEEDER FOR ASSEMBLEON GEM 8*2 FOR 0201(1005)
8mm 0201 CL Tapefeeder
Part nr.: 9498 396 00339 PA 2903-77
8mm feeder for 0201, 2mm pitch Green Handle CL-823-15 |
 |

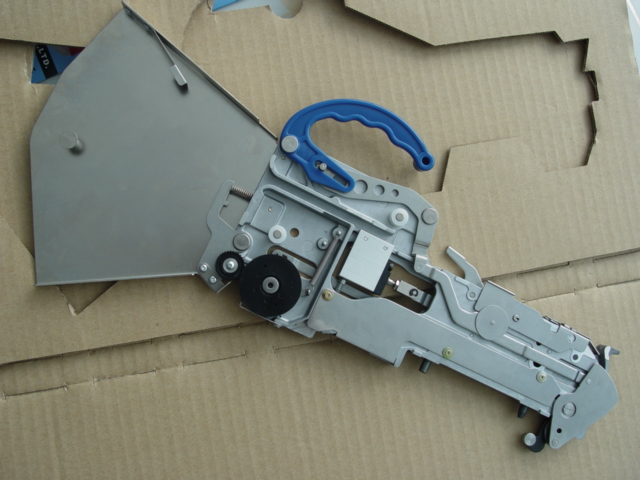

PHILIPS FEEDER FOR ASSEMBLEON GEM 8*2 FOR 0402
8mm 0402 CL Tapefeeder
Part nr.: 9498 396 00340 2903-78
8 mm feeder for 0402, 2mm pitch, reel Blue Handle CL-825-15
|
 |
PHILIPS FEEDER ASSEMBLEON GEM 8*4
8mm Standard CL Tapefeeder
Part nr.: 9498 396 00341 PA 2903-79
8 mm feeder, STD, 4mm pitch, reel Black Handle CL-84-15 |
 |

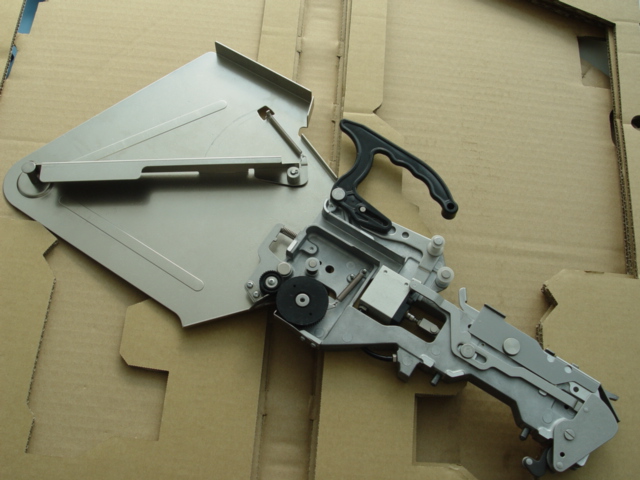

PHILIPS FEEDER ASSEMBLEON GEM 12
12mm CL Tapefeeder
Part nr.: 9498 396 00342 PA 2903-88
12mm CL feeder, 4-12mm pitch, 15" Reel Holder Black Handle CL-12 |
|
|

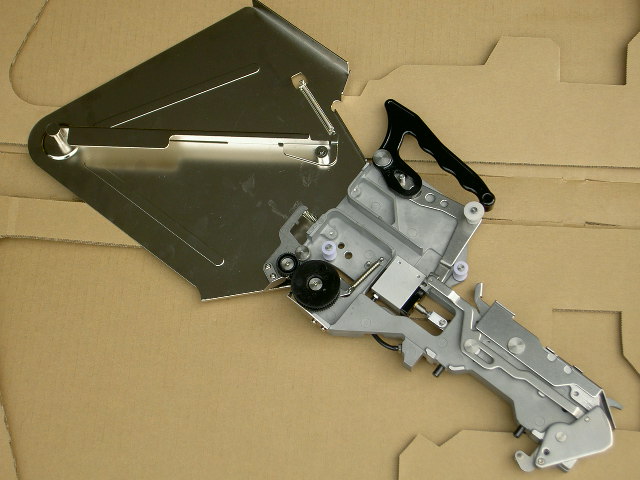

PHILIPS FEEDER ASSEMBLEON GEM 16
16mm CL Tapefeeder
Part nr.: 9498 396 00338 PA 2903-27
16mm feeder, 4-16mm pitch, 15" Reel Holder Black Handle CL-16
|
|
|

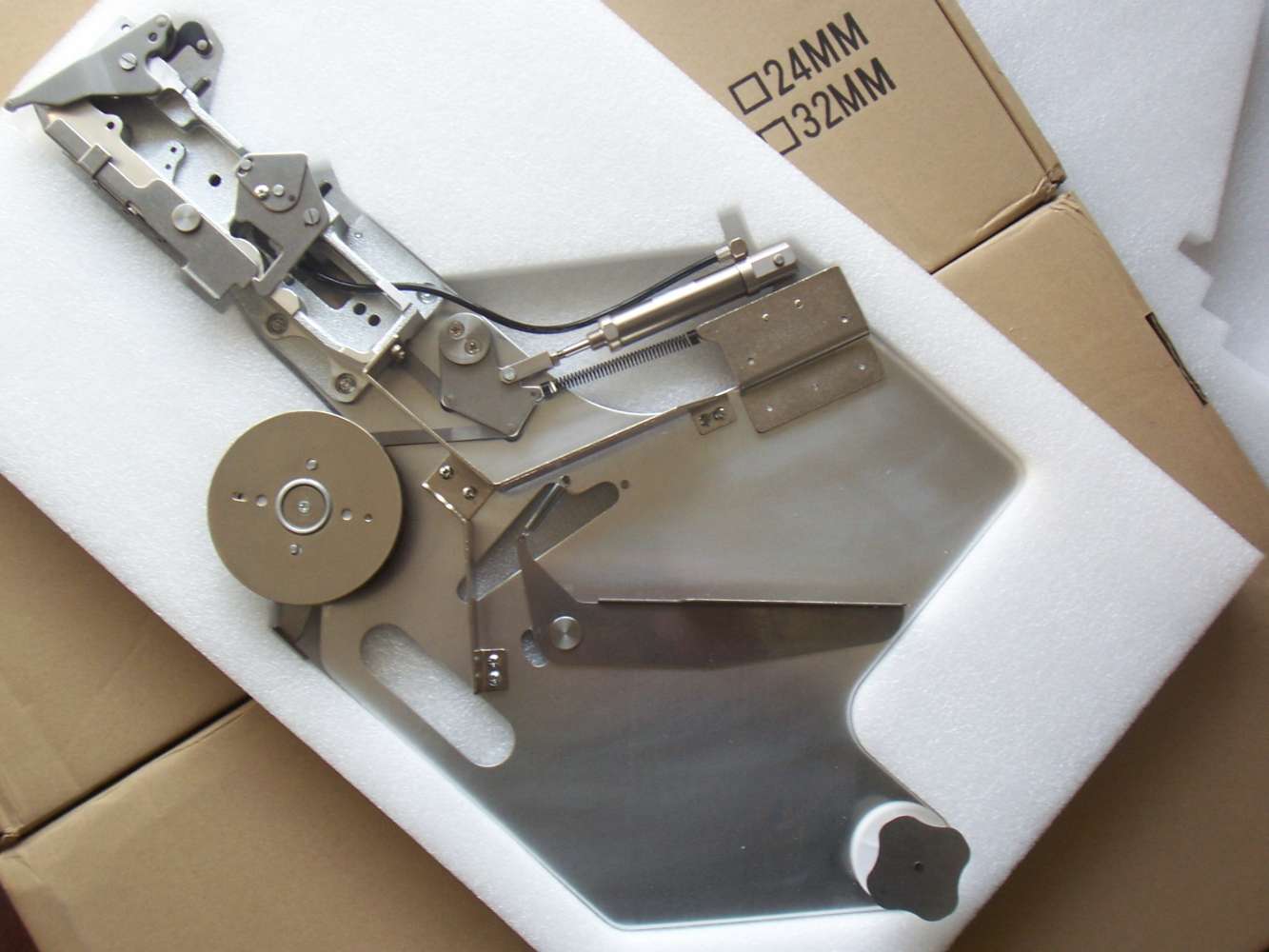

PHILIPS FEEDER ASSEMBLEON GEM 24
24mm CL Tape Feeder
Part nr.: 9965 000 15825 PA 2903-38
24mm feeder, 4-24mm pitch, 15" Reel Holder CL-24 |
|
|

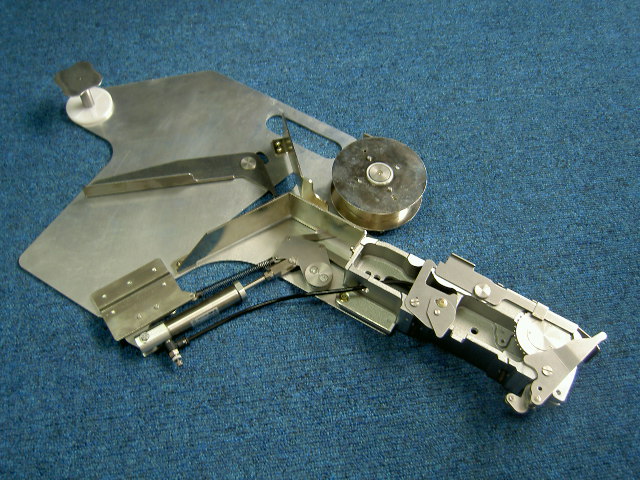

PHILIPS FEEDER ASSEMBLEON GEM 32
32mm CL Tapefeeder
Part nr.: 9965 000 15826 PA 2903-48
32mm feeder, 8-32 mm pitch, 15" Reel Holder CL-32 |
|
|

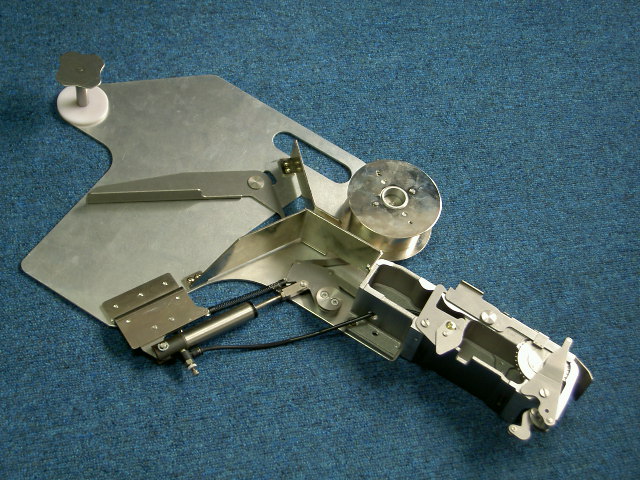

PHILIPS FEEDER ASSEMBLEON GEM 44
44mm CL Tapefeeder
Part nr.: 9965 000 15827 PA 2903-58
44mm feeder, 8-36 mm pitch, 15" Reel Holder CL-44 |
|
|

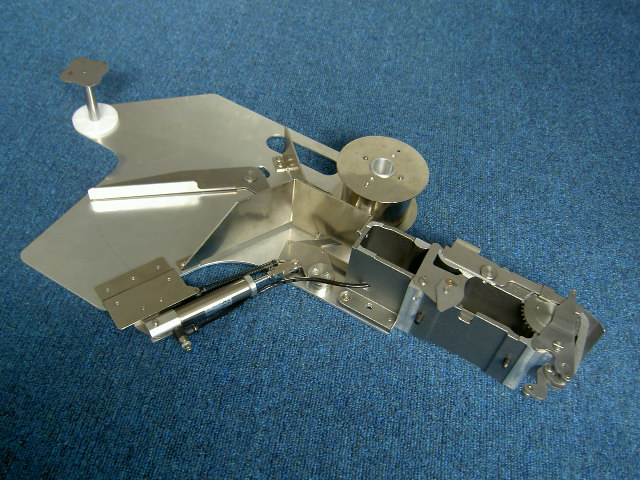

PHILIPS FEEDER ASSEMBLEON GEM 56
56mm CL Tapefeeder
Part nr.: 9965 000 15828 PA 2903-68
56mm feeder, 8-36mm pitch, 15" Reel Holder CL-56
|
|
|
PHILIPS FEEDER ASSEMBLEON GEM 72
72mm CLi Tapefeede
Part nr.: 9498 396 01977 PA 2903-67
72mm feeder, 8-36mm pitch, 15" Reel Holder CLi-72
|
|
|

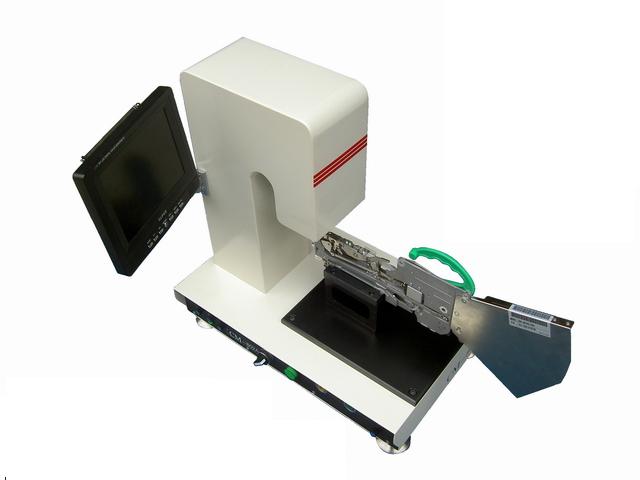

1：Product Name:Intellectual Feeder Calibration Jig
2：Model：DBE-FCJ
3: Characteristic
* Easy to manipulate.
* Quite different with the traditional feeder calibration jigs, it has no axes and guides, just adjust buttons which you can move focus with ease, so more durable
* Actual feeding as the machine does so running can be simulated. Also you can control it manually.
* High Definition Industrial CCD with magnifying power 120
* Through a monitor, capable to calibrate all different sizes and different kinds of feeders using the built-in line generator.
* Verify and calibrate feeders correctly by using master steel tapes.
* Light and more durable。
4: Available for feeders such as Panasonic , Fuji , Juki , Yamaha ,Samsung , KME , Siemens , Sanyo, etc.
5: Power AC 110V / 220V
6: Air pressure:4-5kg/cm2
7: Volumne：450mm(L)×300mm(W)×540mm(H)
8: Weight ：20 Kg |
|
|
