Home      ESD Magazine&Racks      Pinion Adjustable Type Magazines

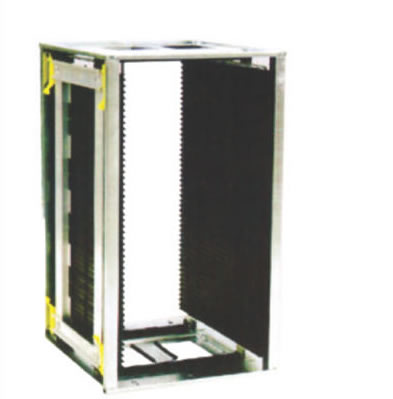

 P/N: Plus-P-001
Dimension: (LxWxH) 355x320x563mm .
Surface Resistance: 104－106Ω (Optional : Heat-resistant up to 130℃)
PCB size (LxW): 350x(50-250)mm
Maximum PCB Qty: 50
Slot Gap: 5mm, Slot Depth: 3.5mm
Pitch : 10mm
Base Material: Metal

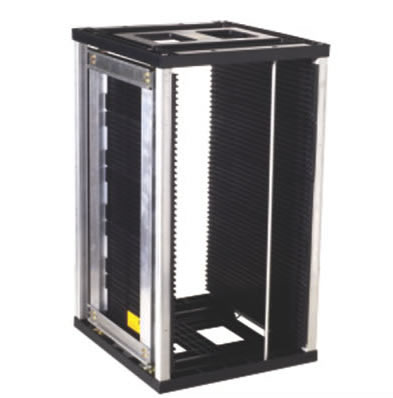

 P/N: Plus-P-002
Dimension: (LxWxH) 355x320x563mm .
Surface Resistance: 104－106Ω
PCB size (LxW): 350x(50-250)mm
Maximum PCB Qty: 50
Slot Gap: 5mm, Slot Depth: 3.5mm
Pitch : 10mm
Base Material: Plastic

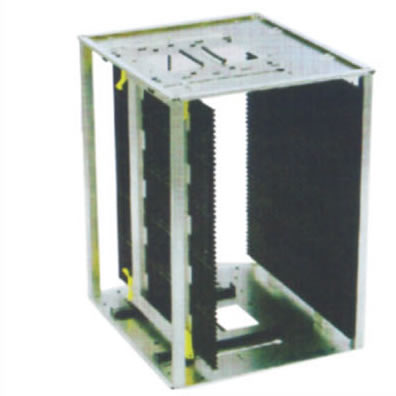

 P/N: Plus-P-003
Dimension: (LxWxH) 460x400x563mm .
Surface Resistance: 104－106Ω (Optional : Heat-resistant up to 130℃)
PCB size (LxW): 460x(50-330)mm
Maximum PCB Qty: 50
Slot Gap: 5mm, Slot Depth: 3.5mm
Pitch : 10mm
Base Material: Metal

 P/N: Plus-P-004
Dimension: (LxWxH) 535x460x570mm .
Surface Resistance: 104－106Ω
PCB size (LxW): 535x(50-390)mm
Maximum PCB Qty: 50
Slot Gap: 5mm, Slot Depth: 3.5mm
Pitch : 10mm
Base Material: Metal

 P/N: Plus-P-005
Dimension: (LxWxH) 535x530x570mm .
Surface Resistance: 104－106Ω
PCB size (LxW): 535x(120-460)mm
Maximum PCB Qty: 50
Slot Gap: 5mm, Slot Depth: 3.5mm
Pitch : 10mm
Base Material: Metal
